Bambu fleet display

ESPHome/LVGL monitor for the Sunton ESP32-8048S043C, with an 800×480 landscape RGB display, GT911 capacitive touch, 16 MB flash and 8 MB octal PSRAM. The hardware pins and LCD timings follow the ESPHome device reference. This configuration is for the C capacitive-touch version.

Inspired by BambuHelper, this implementation subscribes to the existing Home Assistant Bambu Lab entities over a single encrypted ESPHome API connection. Home Assistant handles the printer connections. No Bambu access codes, cloud credentials or additional Home Assistant automations are needed. Home Assistant must be running and its Bambu integration must have current printer data.

Pages and navigation

The configured swipe order is:

1. PrintsCharming — P1S, Office, both four-slot AMS units.
2. Polly-Pocket — A1 mini, Office, external spool.
3. Ds-Turd-Flinger — A1, Upstairs, four-slot AMS.
4. Jordyns-Layer-Slayer — A1, Upstairs, four-slot AMS.
5. Constipation-Orion — Office, left/right nozzles and four-slot AMS.

Swipe left for the next printer or right for the previous printer. Navigation wraps from the last page to the first. Previous/Next buttons provide the same navigation. Swipes propagate through the metric cards and filament slots. A swipe consumes the rest of that touch so dragging across a navigation button does not also click it.

Each page shows print status, job name, progress, nozzle and bed current/target temperatures, remaining time, current/total layers, print stage, part fan speed and filament colors/types. The active filament slot has a green outline. Print errors and HMS alerts change the status badge to red; paused prints use amber. The display shows an alert badge rather than the detailed HMS diagnostic text.

When Home Assistant disconnects or a printer is offline, its live metrics are cleared to -- rather than continuing to show cached values as live. Unknown individual values also show --. Remaining time respects the HA sensor's h, min or s unit, and temperature labels use the imported HA temperature unit. Only the visible page is refreshed each second; every printer's subscriptions remain connected.

This version provides monitoring and local page navigation. Camera feeds, cover images, printer pause/stop controls, power switching, cloud login and automatic printer rotation are outside its current scope.

Install

1. Keep esphome/bambu-printer-display.yaml and the entire bambu-display/ folder together in the ESPHome configuration directory. The generated package is checked in, so the ESPHome dashboard can compile it without running the generator first.
2. Supply the existing api_encryption_key, wifi_iot_ssid and wifi_password entries in that directory's secrets.yaml.
3. Use ESPHome 2026.9.0 or newer. Compile and install bambu-printer-display.yaml over the board's USB-to-UART bridge for the first flash; subsequent installs can use encrypted OTA.
4. Add Bambu Printer Display through Home Assistant's ESPHome integration using the same API encryption key. The display only subscribes to entities, so it does not require permission to perform Home Assistant actions.
5. Confirm all pages receive data and verify touch direction and color order on the physical panel. Entity IDs match the repository's ha-entities.txt snapshot; renamed or disabled entities in live HA must be corrected/enabled there.

The USB D+/D− GPIO19/20 pins are used by the board's touch bus. Logging therefore uses UART0. ESPHome may still warn about these two pins; they are intentional for this board. If GT911 is not found at 0x5D, inspect the I²C scan and use its reported address (some hardware revisions select 0x14). Backlight is GPIO2; RGB data pins and timings are explicit in the main YAML rather than borrowed from a 5″ board.

CLI checks from the repository root:

esphome config esphome/bambu-printer-display.yaml
esphome compile esphome/bambu-printer-display.yaml

Change or expand the fleet

Edit printers.yaml, then regenerate and flash the display:

python esphome/bambu-display/generate.py
python esphome/bambu-display/generate.py --check

The generator requires PyYAML (already included in ESPHome's Python environment). Do not hand-edit generated.yaml. There is no two-printer limit in the generator; adding a printer creates its own subscriptions, widgets and swipe page. The practical limit depends on the board's available RAM and flash, and adding printers requires regenerating and installing the firmware. Five printers are configured; generation is also tested with seven. Each printer's filament strip supports up to eight slots.

- id: another_printer
  name: Another Printer
  subtitle: Workshop
  entity_prefix: my_bambu_printer
  entities:
    progress: sensor.renamed_progress
    time_left: sensor.renamed_remaining_time
  filament_banks:
    - label: A
      entity_prefix: my_bambu_printer_ams_1

For a dual-nozzle printer add dual_nozzle: true. For external filament add external_spools: [{label: EXT, entity: sensor.my_external_spool}]. Per-metric entities overrides use the keys in NUMERIC, DUAL, TEXT and BINARY inside generate.py. A remaining-time override also updates its unit subscription. Filament entries use the Bambu integration's type, color and active attributes.

Development checks and screenshots

python -m unittest discover -s esphome/bambu-display -v
clang++ -std=c++17 -Wall -Wextra -Werror esphome/bambu-display/test_dashboard.cpp -o /tmp/bambu-dashboard-test
/tmp/bambu-dashboard-test
python esphome/bambu-display/preview.py

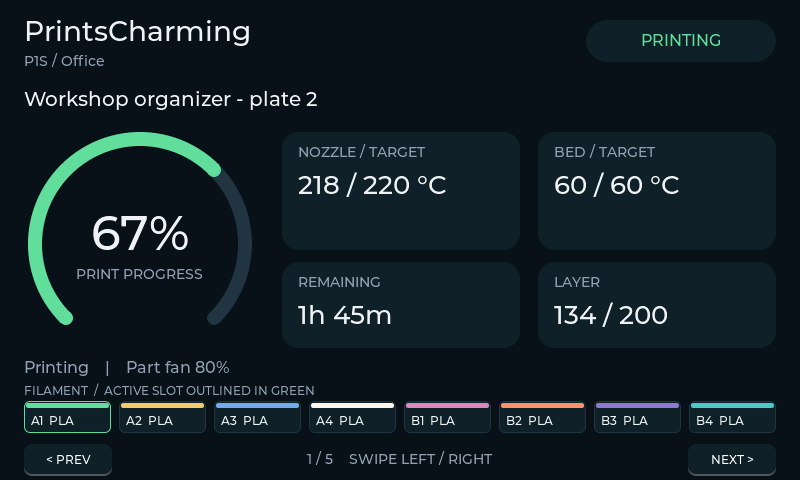

preview.py compiles the same generated LVGL widgets for ESPHome's SDL host with clearly synthetic telemetry, then captures all five pages into previews/. It needs ESPHome, Pillow, a C++ compiler and SDL2 (sdl2-config on PATH). It runs headlessly, without connecting to Home Assistant or any printer. It also injects LVGL pointer samples to check left/right swipes, page wraparound and consumption of a swipe that starts on a navigation button. These are software layout previews; physical panel timings, touch and Wi-Fi still need a hardware check.
